Email MSG Attachment Extractor

Overview

JavaFX app with drag-and-drop and file chooser input.
Batch-processes .MSG files from selected folders.
Filters true attachments and writes safe, non-overwriting filenames.

My contribution

Built a JavaFX interface with drag-and-drop, file chooser support and Dutch messages.
Parsed .MSG files with the Simple Java Mail Outlook message parser.
Added folder processing, attachment extraction, safe filenames and duplicate handling.

Outcome

Desktop utility for extracting true attachments from single .MSG files or folders.
Predictable output folders under a user-selected base directory.
Working Windows version now used on my friend's laptop, where the earlier PowerShell script was no longer reliable.

Goal

Help a friend process customer and supplier emails with many attachments.
Replace a PowerShell script that became unreliable on an ARM64 Windows laptop.
Process .MSG files locally without depending on Outlook automation.

Approach

Mapped the manual workflow: open .MSG files and save attachments one by one.
Kept the scope narrow: choose a work folder, drop or select files and extract attachments.
Validated Java libraries for local .MSG parsing.

Artifacts

JavaFX extraction workflow code example.
.MSG parsing, attachment extraction and filename handling code example.
Settings persistence code example for the selected output folder.

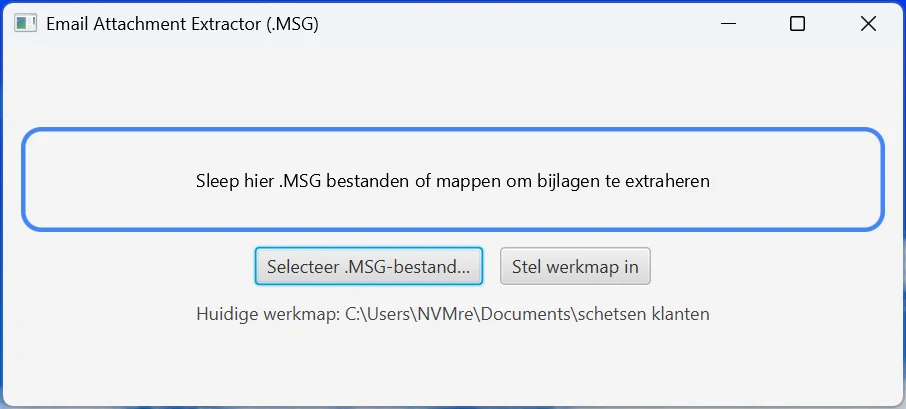

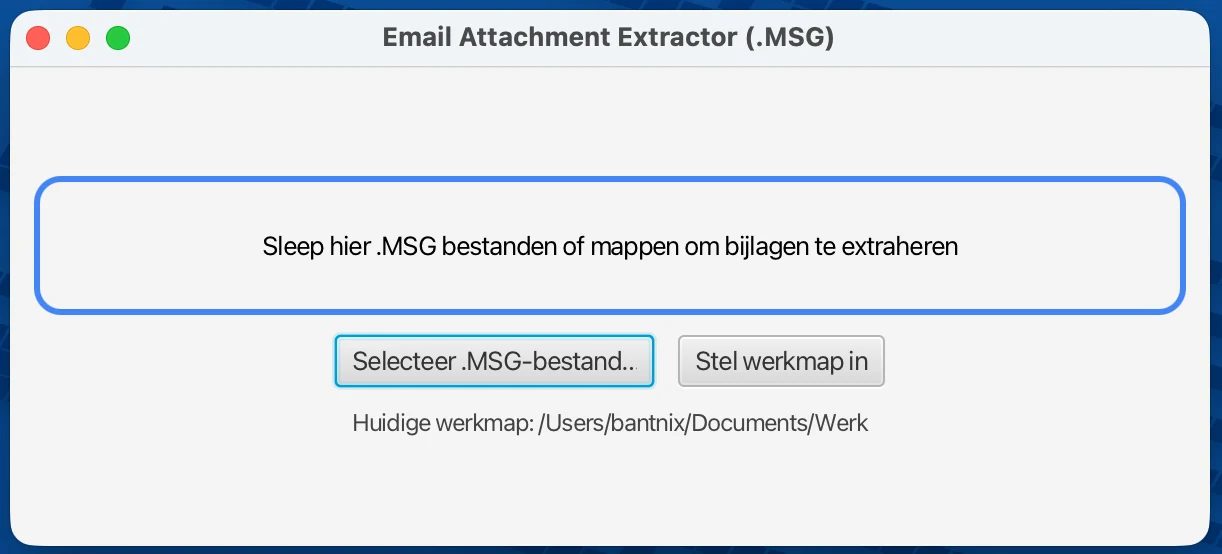

JavaFX extraction workflow

EmailExtractorApp.java

java / 436 lines

Main application file with drag-and-drop, MSG parsing and attachment extraction.

import javafx.application.Application;
import javafx.application.Platform;
import javafx.geometry.Insets;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.*;
import javafx.scene.input.Dragboard;
import javafx.scene.input.TransferMode;
import javafx.scene.layout.*;
import javafx.scene.text.Text;
import javafx.stage.DirectoryChooser;
import javafx.stage.FileChooser;
import javafx.stage.Stage;
import org.simplejavamail.outlookmessageparser.OutlookMessageParser;
import org.simplejavamail.outlookmessageparser.model.OutlookFileAttachment;
import org.simplejavamail.outlookmessageparser.model.OutlookMessage;

import java.io.File;
import java.io.FileOutputStream;
import java.nio.file.Files;
import java.nio.file.Path;
import java.util.List;
import java.util.Optional;

public class EmailExtractorApp extends Application {
    private final SettingsManager settings = new SettingsManager();

    private Stage primaryStage;
    private Label lblCurrentBase;

    @Override
    public void start(Stage stage) {
        this.primaryStage = stage;

        stage.setTitle("Email Attachment Extractor (.MSG)");

        Text txtDropMessage = new Text("Sleep hier .MSG bestanden of mappen om bijlagen te extraheren");

        StackPane paneDropZone = new StackPane(txtDropMessage);
        paneDropZone.setPadding(new Insets(24));
        paneDropZone.setStyle(
                "-fx-border-color: #4285f4;" +
                "-fx-border-width: 3;" +
                "-fx-border-radius: 12;" +
                "-fx-background-radius: 12;"
        );
        StackPane.setAlignment(txtDropMessage, Pos.CENTER);

        Button btnPickFile = new Button("Selecteer .MSG-bestand…");
        btnPickFile.setOnAction(e -> openFileChooserAndHandle(stage));

        Button btnSettings = new Button("Stel werkmap in");
        btnSettings.setOnAction(e -> openSettingsDialog(stage));

        HBox boxActions = new HBox(12, btnPickFile, btnSettings);
        boxActions.setAlignment(Pos.CENTER);

        Path baseNow = settings.getBaseDir();
        lblCurrentBase = new Label("Huidige werkmap: " + (baseNow != null ? baseNow : "(nog niet ingesteld)"));
        lblCurrentBase.setWrapText(true);
        lblCurrentBase.setStyle("-fx-font-size: 12px; -fx-text-fill: #444;");

        VBox boxCenter = new VBox(10, paneDropZone, boxActions, lblCurrentBase);
        boxCenter.setPadding(new Insets(12));
        boxCenter.setFillWidth(true);
        boxCenter.setAlignment(Pos.CENTER);

        BorderPane paneRoot = new BorderPane(boxCenter);
        Scene scene = new Scene(paneRoot, 600, 240);

        paneDropZone.setOnDragOver(e -> {
            Dragboard dragboard = e.getDragboard();

            if (dragboard.hasFiles()) {
                e.acceptTransferModes(TransferMode.COPY);
            }

            e.consume();
        });

        paneDropZone.setOnDragDropped(e -> {
            Dragboard dragboard = e.getDragboard();

            if (dragboard.hasFiles()) {
                for (File file : dragboard.getFiles()) {
                    Path path = file.toPath();

                    if (Files.isDirectory(path)) {
                        processDirectory(path);
                    } else if (file.getName().toLowerCase().endsWith(".msg")) {
                        handleMsgFile(path);
                    } else {
                        showAlert(
                                Alert.AlertType.WARNING,
                                "Ongeldig bestand",
                                "Enkel .MSG of mappen met .MSG worden ondersteund:\n" + file.getName()
                        );
                    }
                }
            }

            e.setDropCompleted(true);
            e.consume();
        });

        stage.setScene(scene);
        stage.setAlwaysOnTop(false);
        stage.show();

        if (!settings.hasValidBaseDir()) {
            showAlert(
                    Alert.AlertType.INFORMATION,
                    "Welkom bij Email Extractor",
                    "Welkom! Kies eerst een werkmap voor bijlagen."
            );

            boolean picked = openSettingsDialog(stage);

            if (!picked || !settings.hasValidBaseDir()) {
                showAlert(
                        Alert.AlertType.ERROR,
                        "Geen werkmap ingesteld",
                        "Er is geen werkmap ingesteld. De applicatie wordt afgesloten."
                );
                Platform.exit();
            }
        }
    }

    private boolean openSettingsDialog(Stage owner) {
        DirectoryChooser chooserDirectory = new DirectoryChooser();
        chooserDirectory.setTitle("Kies werkmap voor opslag");

        Path current = settings.getBaseDir();

        if (current != null && Files.isDirectory(current)) {
            chooserDirectory.setInitialDirectory(current.toFile());
        }

        boolean previousAlwaysOnTop = owner.isAlwaysOnTop();
        owner.setAlwaysOnTop(false);

        File chosen = chooserDirectory.showDialog(owner);

        owner.setAlwaysOnTop(previousAlwaysOnTop);

        if (chosen == null) {
            return false;
        }

        settings.setBaseDir(chosen.toPath());
        settings.save();

        if (lblCurrentBase != null) {
            lblCurrentBase.setText("Huidige werkmap: " + chosen.getAbsolutePath());
        }

        showAlert(
                Alert.AlertType.INFORMATION,
                "Instellingen opgeslagen",
                "Werkmap ingesteld op:\n" + chosen.getAbsolutePath()
        );

        return true;
    }

    private void openFileChooserAndHandle(Stage owner) {
        FileChooser chooserFile = new FileChooser();
        chooserFile.setTitle("Kies een .MSG-bestand");
        chooserFile.getExtensionFilters().add(
                new FileChooser.ExtensionFilter("Outlook-bericht (*.msg)", "*.msg")
        );

        Path base = settings.getBaseDir();

        if (base == null || !Files.isDirectory(base)) {
            showAlert(
                    Alert.AlertType.INFORMATION,
                    "Werkmap nodig",
                    "Kies eerst een werkmap via 'Stel werkmap in'."
            );

            boolean picked = openSettingsDialog(owner);
            base = settings.getBaseDir();

            if (!picked || base == null || !Files.isDirectory(base)) {
                return;
            }
        }

        try {
            chooserFile.setInitialDirectory(base.toFile());
        } catch (Exception ignored) {
            // Keep the file chooser usable even if the initial directory cannot be applied.
        }

        boolean previousAlwaysOnTop = owner.isAlwaysOnTop();
        owner.setAlwaysOnTop(false);

        File chosen = chooserFile.showOpenDialog(owner);

        owner.setAlwaysOnTop(previousAlwaysOnTop);

        if (chosen == null) {
            return;
        }

        if (chosen.getName().toLowerCase().endsWith(".msg")) {
            handleMsgFile(chosen.toPath());
        } else {
            showAlert(
                    Alert.AlertType.WARNING,
                    "Ongeldig bestand",
                    "Kies een bestand met de extensie .MSG."
            );
        }
    }

    private void processDirectory(Path dir) {
        try {
            Files.walk(dir)
                    .filter(path -> !Files.isDirectory(path))
                    .filter(path -> path.getFileName().toString().toLowerCase().endsWith(".msg"))
                    .forEach(this::handleMsgFile);
        } catch (Exception ex) {
            showAlert(Alert.AlertType.ERROR, "Fout bij mapverwerking", ex.getMessage());
        }
    }

    private void handleMsgFile(Path msgPath) {
        Path baseDir = settings.getBaseDir();

        if (baseDir == null || !Files.isDirectory(baseDir)) {
            showAlert(
                    Alert.AlertType.INFORMATION,
                    "Werkmap nodig",
                    "Kies eerst een werkmap via 'Stel werkmap in'."
            );

            boolean picked = openSettingsDialog(primaryStage);
            baseDir = settings.getBaseDir();

            if (!picked || baseDir == null || !Files.isDirectory(baseDir)) {
                return;
            }
        }

        String defaultName = stripExt(msgPath.getFileName().toString());
        String folderName = promptFolderName(defaultName);

        if (folderName == null || folderName.isBlank()) {
            return;
        }

        Path target = baseDir.resolve(folderName).resolve("Attachments");

        try {
            Files.createDirectories(target);

            OutlookMessageParser parser = new OutlookMessageParser();
            OutlookMessage message = parser.parseMsg(msgPath.toFile());

            List<OutlookFileAttachment> fileAttachments = message.fetchTrueAttachments();

            int saved = 0;

            for (OutlookFileAttachment attachment : fileAttachments) {
                String name = safeName(attachment, saved);
                Path outputPath = unique(target, name);

                try (FileOutputStream fos = new FileOutputStream(outputPath.toFile())) {
                    fos.write(attachment.getData());
                }

                saved++;
            }

            if (saved > 0) {
                showAlert(
                        Alert.AlertType.INFORMATION,
                        "Succes",
                        "Opgeslagen: " + saved + " bijlage(n) in:\n" + target
                );
            } else {
                showAlert(
                        Alert.AlertType.INFORMATION,
                        "Geen bijlagen",
                        "Geen bijlagen gevonden in:\n" + msgPath.getFileName()
                );
            }
        } catch (Exception ex) {
            showAlert(
                    Alert.AlertType.ERROR,
                    "Fout bij MSG-extractie",
                    ex.getClass().getSimpleName() + ": " + ex.getMessage()
            );
        }
    }

    private static String safeName(OutlookFileAttachment attachment, int index) {
        String name = attachment.getLongFilename();

        if (name == null || name.isBlank()) {
            name = attachment.getFilename();
        }

        if (name == null) {
            name = "";
        }

        name = name.replace('\\', '/');

        int slash = name.lastIndexOf('/');

        if (slash >= 0) {
            name = name.substring(slash + 1);
        }

        name = name.replaceAll("\\p{C}", "");
        name = name.replaceAll("[\\\\/:*?\"<>|]", "_");
        name = name.replaceAll("^[\\s.]+", "").replaceAll("[\\s.]+$", "");

        if (name.isBlank()) {
            String extension = ".bin";
            String sourceName = attachment.getLongFilename();

            if (sourceName == null || sourceName.isBlank()) {
                sourceName = attachment.getFilename();
            }

            if (sourceName != null) {
                int dot = sourceName.lastIndexOf('.');

                if (dot > 0 && dot < sourceName.length() - 1) {
                    extension = sourceName.substring(dot);
                }
            }

            name = "attachment_" + (index + 1) + extension;
        }

        final int maxLength = 180;

        if (name.length() > maxLength) {
            int dot = name.lastIndexOf('.');
            String baseName = dot > 0 ? name.substring(0, dot) : name;
            String extension = dot > 0 ? name.substring(dot) : "";

            if (baseName.length() > maxLength) {
                baseName = baseName.substring(0, maxLength);
            }

            name = baseName + extension;
        }

        return name;
    }

    private static Path unique(Path folder, String name) {
        Path outputPath = folder.resolve(name);

        String baseName = name;
        String extension = "";

        int dot = name.lastIndexOf('.');

        if (dot > 0) {
            baseName = name.substring(0, dot);
            extension = name.substring(dot);
        }

        int index = 1;

        while (Files.exists(outputPath)) {
            outputPath = folder.resolve(baseName + " (" + index + ")" + extension);
            index++;
        }

        return outputPath;
    }

    private static String stripExt(String name) {
        int index = name.lastIndexOf('.');
        return index > 0 ? name.substring(0, index) : name;
    }

    private String promptFolderName(String defaultName) {
        TextInputDialog dialogFolderName = new TextInputDialog(defaultName);
        dialogFolderName.setTitle("Mapnaam");
        dialogFolderName.setHeaderText(null);
        dialogFolderName.setContentText("Voer mapnaam in:");

        if (primaryStage == null) {
            Optional<String> result = dialogFolderName.showAndWait();
            return result.map(String::trim).orElse(null);
        }

        dialogFolderName.initOwner(primaryStage);

        boolean previousAlwaysOnTop = primaryStage.isAlwaysOnTop();
        primaryStage.setAlwaysOnTop(false);

        Optional<String> result = dialogFolderName.showAndWait();

        primaryStage.setAlwaysOnTop(previousAlwaysOnTop);

        return result.map(String::trim).orElse(null);
    }

    private void showAlert(Alert.AlertType type, String title, String message) {
        Alert alertMessage = new Alert(type);
        alertMessage.setTitle(title);
        alertMessage.setHeaderText(null);
        alertMessage.setContentText(message);

        if (primaryStage != null) {
            alertMessage.initOwner(primaryStage);
        }

        boolean previousAlwaysOnTop = primaryStage != null && primaryStage.isAlwaysOnTop();

        if (primaryStage != null) {
            primaryStage.setAlwaysOnTop(false);
        }

        alertMessage.showAndWait();

        if (primaryStage != null) {
            primaryStage.setAlwaysOnTop(previousAlwaysOnTop);
        }
    }

    public static void main(String[] args) {
        launch(args);
    }
}

Settings persistence

SettingsManager.java

java / 68 lines

Small settings manager that stores and reloads the selected base output directory.

import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.nio.file.Files;
import java.nio.file.Path;
import java.util.Properties;

public class SettingsManager {
    private static final String APP_DIR_NAME = ".emailextractor";
    private static final String FILE_NAME = "config.properties";
    private static final String KEY_BASEDIR = "baseDir";

    private final Path configDir;
    private final Path configFile;
    private final Properties props = new Properties();

    public SettingsManager() {
        Path home = Path.of(System.getProperty("user.home"));
        this.configDir = home.resolve(APP_DIR_NAME);
        this.configFile = configDir.resolve(FILE_NAME);
        load();
    }

    private void load() {
        if (!Files.exists(configFile)) {
            return;
        }

        try (InputStream in = Files.newInputStream(configFile)) {
            props.load(in);
        } catch (IOException ignored) {
            // Invalid or unreadable? Stop!
        }
    }

    public void save() {
        try {
            Files.createDirectories(configDir);

            try (OutputStream out = Files.newOutputStream(configFile)) {
                props.store(out, "Email Extractor settings");
            }
        } catch (IOException ignored) {
            // Settings persistence...
        }
    }

    public Path getBaseDir() {
        String value = props.getProperty(KEY_BASEDIR);

        if (value == null || value.isBlank()) {
            return null;
        }

        return Path.of(value);
    }

    public void setBaseDir(Path dir) {
        if (dir != null) {
            props.setProperty(KEY_BASEDIR, dir.toString());
        }
    }

    public boolean hasValidBaseDir() {
        Path baseDir = getBaseDir();
        return baseDir != null && Files.isDirectory(baseDir);
    }
}
